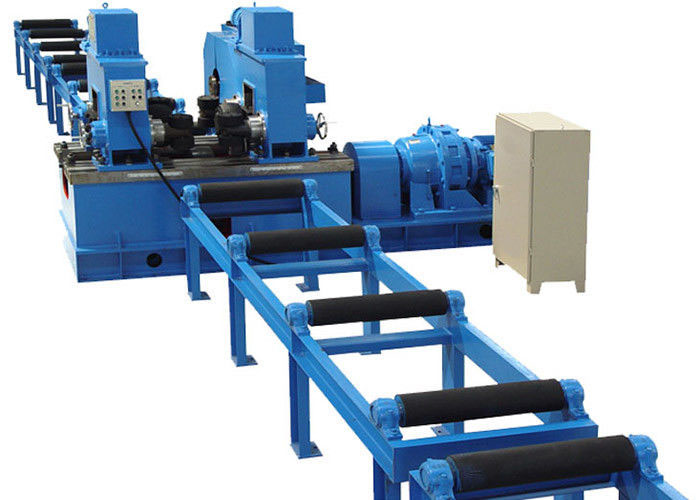

Hydraulic Automatic Centering H Beam Production Line 1200-1800mm Web Height
The auto-welding machine for H-type steel accepts the AC frequency conveyor to control speed with the merits of stable and reliable running and quick returning. It use the auto-arc tracing & centering device to ensure the welding gun being auto and correct centering to the target workpiece. Meanwhile, it is equipped by the auto welding flux feed and recovery system, easy operating and high efficiency. And the column-beam welding machine can increase the height of web according to the need of the users.
Technical Parameters:
| Model | BT520125 |
| Web Height (mm) | 200-2000 |
| Web Width(mm) | 200-800 |
| Model of Welding machine | Two sets of model MZ1-1000 SAW welding machine |
| Form of Welding | Ship-welding |
| Welding Speed(m/min) | 0.15-1.0m/min |
| Returning Speed(m/min) | 3m/min |
| Rails Span | 2000mm |
| Overall Power | 10kw |
Equipment Performance:
- The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity. All of the operation are centralized on the electric control button panel, with easy and convenient operation and precise positioning.
- The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5—6 M/min.
- The main components of this machine are welded structure parts with large strength and light weight. and the key components have been stress relieved, which don’t deform easily.
- Can be used as eccentric H-beam.
Main Device
1 . CNC cutting multi-head flame machine
2 . H Beam assembly Machine
3 . H Beam Flange straightening machine
4 . H Beam gantry-welding machine
RFQ
1 . Does your company supply and build the machines to suit customer's needs and specifications?
Yes, we can custom-made the machine according to your requirements.
2 . What is your advantages over your competitors' machine?
Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
3 . Does the machine come with a guarantee?
We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
Packaging & Shipping
1. Before loading to the container, we will check the machine first
2. make some protection on the machine, such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
3. we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not
4. we will take photos for customer when loading to container.
