Product speed by punching: 2.55m/min
Continuous roll forming speed: 10-15m/min
Material thickness: 1-3mm
Material require: Q235 cold roll steel
Production line has automatic and manual two operating mode, may realize the linkage and the partition revolution work.
Main composition of machine
This unit consists of the decoiler, ML-900 flatting, 200T punch, die, servo feeding, guider, main roll forming machine, follow cutting, cut-to-length part, recoiler, electrical control cabinet; etc.
Each part major technical parameters:
1)Drive decoiler:
Material width:860mm
Material weight:6000kg
Material inner diameter:460-510mm
Material outer diameter:1200mm
Drive power: electromotor and speed reducer integration, 4kw frequency conversion electromotor
Frame type: cantalever inner support, manual handle afterbody, pneumatic press cantalever.
2)Flatting
Working rolls: 11 rolls, up 4/down 5, the residual 2 rolls is clamp deliver rolls.
Flatting bound: material thickness 12mm, material width 100-860mm
Drive power: 5.5kw frequency conversion electromotor
Speed reducer model: ZQ250
flatting speed:310 m/min
Parenthesis up and down a pair of fortified wheel
Processing flow:

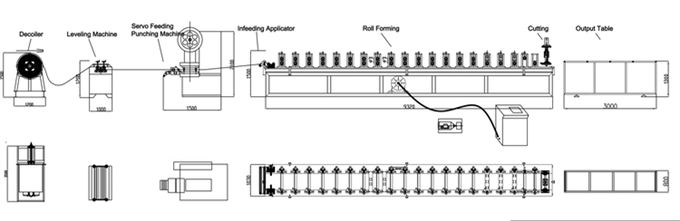

Uncoiler—Feeding—Leveling—Punching—Roll forming—Hydraulic cutting—Output table
Details abt the cable tray roll forming machine:
1 Continual punching mould
Amount: Each kind of width specification 1 set dies, total 6 sets
Die require: Cr12 quench
2 Servo feeding set
Servo electromotor power: 4.4kw
Multistage type feeding, memory ten group of memory functions
Man-machine contact surface numerical control system
Uses Mitsubishi servometer
3 Holds material (use in cushion section)
The roller type, the both sides have the bearing support, 3 sets, use in holding the material and under the deposited material spacing.
4 Guide
A pair of horizontal roller and two pairs of vertical guide rolls, total 1 sets.
5 Main roll forming machine
forming frame: 16 sets
Forming variety: bridge frame
material max width:600mm
material max thickness:≤2.0mm
forming width: 100-600mm
forming height: 50-200mm
The diameter of the roller axis: 85mm
Roll mould material: Gcr15,quenching treatment:HRC58-62°
Drive type:30kw frequency conversion electromotor, ZQ500 Main speed reducer
Autocephaly distribute gear case
6 Hydraulic cutting
Hydraulic pumping station: 5.5kw
blade cuttimg, blade material Cr12, quench treatment
7 Electrical control
8. Main operation control cubicle
Amount: 1 set
Frequency conversion: 3sets(in main control cubicle, control decoiler, flatting and roll forming machine)
PLC control: 1 set
9 inch liquid crystal touchscreens
All electrical element is the Mitsubishi original installation brand
10 Assistant control cubicle
Amount: 3 sets (follow decoiler, flatting, roll forming machine)
manual handle
